Description	Item No	Unit**	Material	Weight per 100 pcs.	Packaging	Diameter (d)	Thread type	Tensile strength	Length (l)	Diameter of head (dk)	Height of head (k)	Drive shape	Head shape	Thread length (b)
DIN 923 AISI 303 M 10X10 Slotted pan head screws with shoulder	0923210 10	50	A1	1,95 kg	50 pcs.	10 mm	Metric	500 N/mm2	10 mm	20	4.6	Slot	Flat head	13.5 mm
DIN 923 AISI 303 M 2X6 Slotted pan head screws with shoulder	092322 6	100	A1	0,05 kg	100 pcs.	2 mm	Metric	500 N/mm2	6 mm	4.5	1.2	Slot	Flat head	3 mm
DIN 923 AISI 303 M 3X10 Slotted pan head screws with shoulder	092323 10	100	A1	0,16 kg	100 pcs.	3 mm	Metric	500 N/mm2	10 mm	7	1.8	Slot	Flat head	4.5 mm
DIN 923 AISI 303 M 3X2 Slotted pan head screws with shoulder	092323 2	100	A1	0,08 kg	100 pcs.	3 mm	Metric	500 N/mm2	2 mm	7	1.8	Slot	Flat head	4.5 mm
DIN 923 AISI 303 M 3X2,5 Slotted pan head screws with shoulder	092323 25	100	A1	0,09 kg	100 pcs.	3 mm	Metric	500 N/mm2	2.5 mm	7	1.8	Slot	Flat head	4.5 mm
DIN 923 AISI 303 M 3X3 Slotted pan head screws with shoulder	092323 3	100	A1	0,09 kg	100 pcs.	3 mm	Metric	500 N/mm2	3 mm	7	1.8	Slot	Flat head	4.5 mm
DIN 923 AISI 303 M 3X4 Slotted pan head screws with shoulder	092323 4	100	A1	0,10 kg	100 pcs.	3 mm	Metric	500 N/mm2	4 mm	7	1.8	Slot	Flat head	4.5 mm
DIN 923 AISI 303 M 3X5 Slotted pan head screws with shoulder	092323 5	100	A1	0,11 kg	100 pcs.	3 mm	Metric	500 N/mm2	5 mm	7	1.8	Slot	Flat head	4.5 mm
DIN 923 AISI 303 M 3X6 Slotted pan head screws with shoulder	092323 6	100	A1	0,12 kg	100 pcs.	3 mm	Metric	500 N/mm2	6 mm	7	1.8	Slot	Flat head	4.5 mm
DIN 923 AISI 303 M 3X8 Slotted pan head screws with shoulder	092323 8	100	A1	0,14 kg	100 pcs.	3 mm	Metric	500 N/mm2	8 mm	7	1.8	Slot	Flat head	4.5 mm
DIN 923 AISI 303 M 4X10 Slotted pan head screws with shoulder	092324 10	100	A1	0,32 kg	100 pcs.	4 mm	Metric	500 N/mm2	10 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X12 Slotted pan head screws with shoulder	092324 12	100	A1	0,36 kg	100 pcs.	4 mm	Metric	500 N/mm2	12 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X16 Slotted pan head screws with shoulder	092324 16	100	A1	0,43 kg	100 pcs.	4 mm	Metric	500 N/mm2	16 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X2 Slotted pan head screws with shoulder	092324 2	100	A1	0,17 kg	100 pcs.	4 mm	Metric	500 N/mm2	2 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X2,5 Slotted pan head screws with shoulder	092324 25	100	A1	0,18 kg	100 pcs.	4 mm	Metric	500 N/mm2	2.5 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X20 Slotted pan head screws with shoulder	092324 20	100	A1	0,51 kg	100 pcs.	4 mm	Metric	500 N/mm2	20 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X3 Slotted pan head screws with shoulder	092324 3	100	A1	0,19 kg	100 pcs.	4 mm	Metric	500 N/mm2	3 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X4 Slotted pan head screws with shoulder	092324 4	100	A1	0,21 kg	100 pcs.	4 mm	Metric	500 N/mm2	4 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X5 Slotted pan head screws with shoulder	092324 5	100	A1	0,23 kg	100 pcs.	4 mm	Metric	500 N/mm2	5 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X6 Slotted pan head screws with shoulder	092324 6	100	A1	0,25 kg	100 pcs.	4 mm	Metric	500 N/mm2	6 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 4X8 Slotted pan head screws with shoulder	092324 8	100	A1	0,28 kg	100 pcs.	4 mm	Metric	500 N/mm2	8 mm	8.5	2.4	Slot	Flat head	6 mm
DIN 923 AISI 303 M 5X10 Slotted pan head screws with shoulder	092325 10	100	A1	0,55 kg	100 pcs.	5 mm	Metric	500 N/mm2	10 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 5X12 Slotted pan head screws with shoulder	092325 12	100	A1	0,61 kg	100 pcs.	5 mm	Metric	500 N/mm2	12 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 5X16 Slotted pan head screws with shoulder	092325 16	100	A1	0,74 kg	100 pcs.	5 mm	Metric	500 N/mm2	16 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 5X2,5 Slotted pan head screws with shoulder	092325 25	100	A1	0,33 kg	100 pcs.	5 mm	Metric	500 N/mm2	2.5 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 5X3 Slotted pan head screws with shoulder	092325 3	100	A1	0,34 kg	100 pcs.	5 mm	Metric	500 N/mm2	3 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 5X4 Slotted pan head screws with shoulder	092325 4	100	A1	0,38 kg	100 pcs.	5 mm	Metric	500 N/mm2	4 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 5X5 Slotted pan head screws with shoulder	092325 5	100	A1	0,41 kg	100 pcs.	5 mm	Metric	500 N/mm2	5 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 5X6 Slotted pan head screws with shoulder	092325 6	100	A1	0,44 kg	100 pcs.	5 mm	Metric	500 N/mm2	6 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 5X8 Slotted pan head screws with shoulder	092325 8	100	A1	0,49 kg	100 pcs.	5 mm	Metric	500 N/mm2	8 mm	11	2.7	Slot	Flat head	7 mm
DIN 923 AISI 303 M 6X10 Slotted pan head screws with shoulder	092326 10	50	A1	0,82 kg	50 pcs.	6 mm	Metric	500 N/mm2	10 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X12 Slotted pan head screws with shoulder	092326 12	50	A1	0,88 kg	50 pcs.	6 mm	Metric	500 N/mm2	12 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X16 Slotted pan head screws with shoulder	092326 16	50	A1	1,04 kg	50 pcs.	6 mm	Metric	500 N/mm2	16 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X20 Slotted pan head screws with shoulder	092326 20	50	A1	1,21 kg	50 pcs.	6 mm	Metric	500 N/mm2	20 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X25 Slotted pan head screws with shoulder	092326 25	50	A1	1,38 kg	50 pcs.	6 mm	Metric	500 N/mm2	25 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X3 Slotted pan head screws with shoulder	092326 3	50	A1	0,53 kg	50 pcs.	6 mm	Metric	500 N/mm2	3 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X4 Slotted pan head screws with shoulder	092326 4	50	A1	0,58 kg	50 pcs.	6 mm	Metric	500 N/mm2	4 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X5 Slotted pan head screws with shoulder	092326 5	50	A1	0,62 kg	50 pcs.	6 mm	Metric	500 N/mm2	5 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X6 Slotted pan head screws with shoulder	092326 6	50	A1	0,66 kg	50 pcs.	6 mm	Metric	500 N/mm2	6 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 6X8 Slotted pan head screws with shoulder	092326 8	50	A1	0,74 kg	50 pcs.	6 mm	Metric	500 N/mm2	8 mm	13	3.1	Slot	Flat head	9 mm
DIN 923 AISI 303 M 8X10 Slotted pan head screws with shoulder	092328 10	50	A1	1,44 kg	50 pcs.	8 mm	Metric	500 N/mm2	10 mm	16	3.8	Slot	Flat head	11 mm
DIN 923 AISI 303 M 8X12 Slotted pan head screws with shoulder	092328 12	50	A1	1,55 kg	50 pcs.	8 mm	Metric	500 N/mm2	12 mm	16	3.8	Slot	Flat head	11 mm
DIN 923 AISI 303 M 8X16 Slotted pan head screws with shoulder	092328 16	50	A1	1,81 kg	50 pcs.	8 mm	Metric	500 N/mm2	16 mm	16	3.8	Slot	Flat head	11 mm
DIN 923 AISI 303 M 8X20 Slotted pan head screws with shoulder	092328 20	50	A1	2,03 kg	50 pcs.	8 mm	Metric	500 N/mm2	20 mm	16	3.8	Slot	Flat head	11 mm
DIN 923 AISI 303 M 8X5 Slotted pan head screws with shoulder	092328 5	50	A1	1,16 kg	50 pcs.	8 mm	Metric	500 N/mm2	5 mm	16	3.8	Slot	Flat head	11 mm
DIN 923 AISI 303 M 8X6 Slotted pan head screws with shoulder	092328 6	50	A1	1,21 kg	50 pcs.	8 mm	Metric	500 N/mm2	6 mm	16	3.8	Slot	Flat head	11 mm
DIN 923 AISI 303 M 8X8 Slotted pan head screws with shoulder	092328 8	50	A1	1,31 kg	50 pcs.	8 mm	Metric	500 N/mm2	8 mm	16	3.8	Slot	Flat head	11 mm

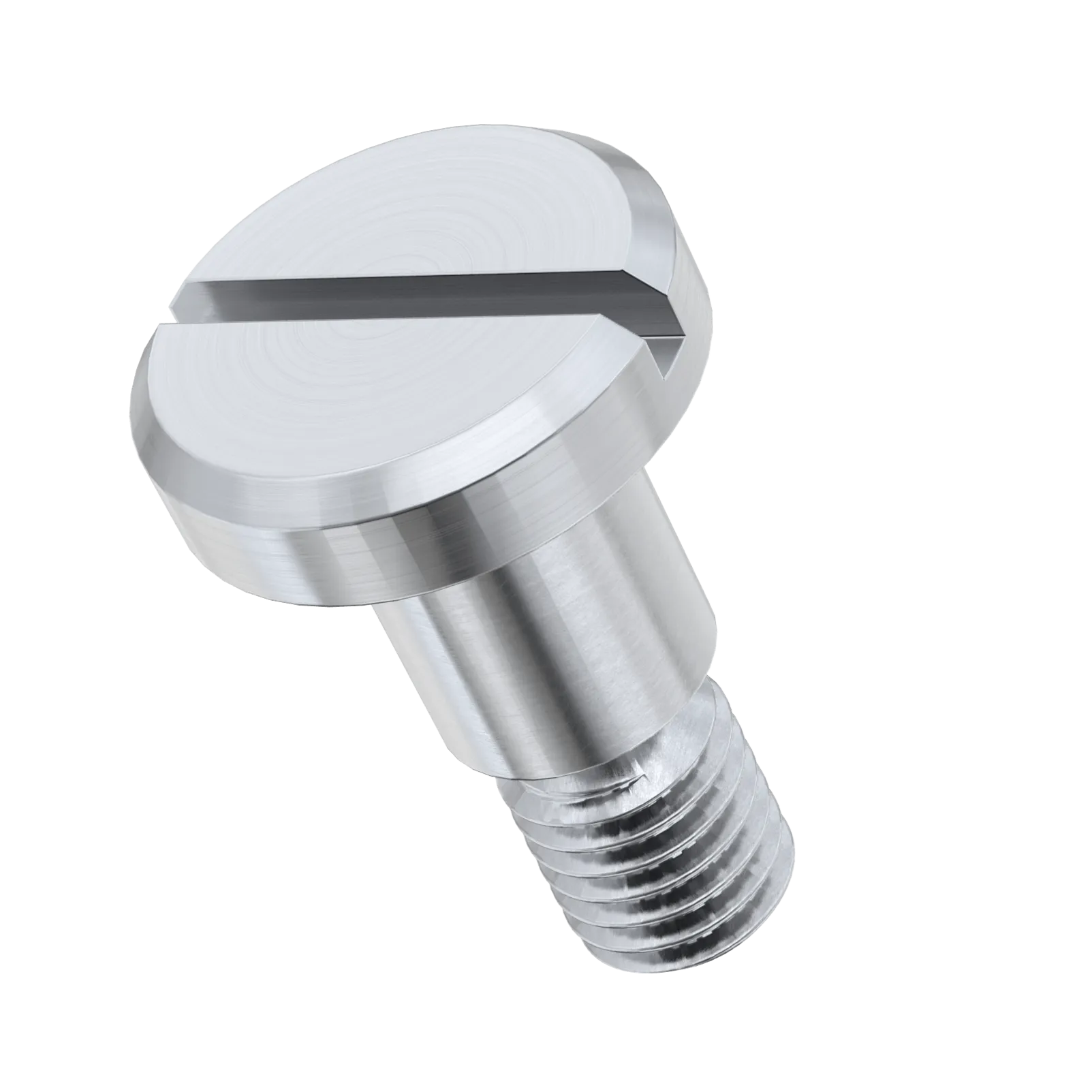

DIN 923 - Slotted Pan Head Screws with Shoulder
