Description	Item No	Unit**	Material	Weight per 100 pcs.	Packaging	Alternative product	Diameter (d)	Thread type	Tensile strength	Measurement d2 (d2)	Length (l)	Measurement d4 (d4)	Corner measurement (e)
DIN 580 A2 M 10 Lifting eye bolts, drop forged	05802010	25	A2	11,00 kg	25 pcs.	DIN 580 A4 M 10	10 mm	Metric	500 N/mm2	25 mm	17 mm	25 mm	8 mm
DIN 580 A2 M 12 Lifting eye bolts, drop forged	05802012	10	A2	18,00 kg	10 pcs.	DIN 580 A4 M 12	12 mm	Metric	500 N/mm2	30 mm	20.5 mm	30 mm	10 mm
DIN 580 A2 M 16 Lifting eye bolts, drop forged	05802016	10	A2	28,00 kg	10 pcs.	DIN 580 A4 M 16	16 mm	Metric	500 N/mm2	35 mm	27 mm	35 mm	12 mm
DIN 580 A2 M 20 Lifting eye bolts, drop forged	05802020	10	A2	45,00 kg	10 pcs.	DIN 580 A4 M 20	20 mm	Metric	500 N/mm2	40 mm	30 mm	40 mm	14 mm
DIN 580 A2 M 24 Lifting eye bolts, drop forged	05802024	5	A2	74,00 kg	5 pcs.	DIN 580 A4 M 24	24 mm	Metric	500 N/mm2	50 mm	36 mm	50 mm	18 mm
DIN 580 A2 M 27 Lifting eye bolts, drop forged	05802027	5	A2	120,00 kg	5 pcs.	DIN 580 A4 M 27	27 mm	Metric	500 N/mm2	65 mm	45 mm	60 mm	22 mm
DIN 580 A2 M 30 Lifting eye bolts, drop forged	05802030	5	A2	166,00 kg	5 pcs.	DIN 580 A4 M 30	30 mm	Metric	500 N/mm2	65 mm	45 mm	60 mm	22 mm
DIN 580 A2 M 36 Lifting eye bolts, drop forged	05802036	1	A2	265,00 kg	1 pcs.	DIN 580 A4 M 36	36 mm	Metric	500 N/mm2	75 mm	54 mm	70 mm	26 mm
DIN 580 A2 M 6 Lifting eye bolts, drop forged	0580206	25	A2	5,50 kg	25 pcs.	DIN 580 A4 M 6	6 mm	Metric	500 N/mm2	16 mm	13 mm	16 mm	6 mm
DIN 580 A2 M 8 Lifting eye bolts, drop forged	0580208	25	A2	6,00 kg	25 pcs.	DIN 580 A4 M 8	8 mm	Metric	500 N/mm2	20 mm	13 mm	20 mm	6 mm
DIN 580 A4 M 10 Lifting eye bolts, drop forged	05804010	25	A4	11,00 kg	25 pcs.		10 mm	Metric	500 N/mm2	25 mm	17 mm	25 mm	8 mm
DIN 580 A4 M 12 Lifting eye bolts, drop forged	05804012	10	A4	18,00 kg	10 pcs.		12 mm	Metric	500 N/mm2	30 mm	20.5 mm	30 mm	10 mm
DIN 580 A4 M 16 Lifting eye bolts, drop forged	05804016	10	A4	28,00 kg	10 pcs.		16 mm	Metric	500 N/mm2	35 mm	27 mm	35 mm	12 mm
DIN 580 A4 M 20 Lifting eye bolts, drop forged	05804020	10	A4	45,00 kg	10 pcs.		20 mm	Metric	500 N/mm2	40 mm	30 mm	40 mm	14 mm
DIN 580 A4 M 24 Lifting eye bolts, drop forged	05804024	5	A4	74,00 kg	5 pcs.		24 mm	Metric	500 N/mm2	50 mm	36 mm	50 mm	18 mm
DIN 580 A4 M 27 Lifting eye bolts, drop forged	05804027	5	A4	120,00 kg	5 pcs.		27 mm	Metric	500 N/mm2	65 mm	45 mm	60 mm	22 mm
DIN 580 A4 M 30 Lifting eye bolts, drop forged	05804030	5	A4	166,00 kg	5 pcs.		30 mm	Metric	500 N/mm2	65 mm	45 mm	60 mm	22 mm
DIN 580 A4 M 36 Lifting eye bolts, drop forged	05804036	1	A4	265,00 kg	1 pcs.		36 mm	Metric	500 N/mm2	75 mm	54 mm	70 mm	26 mm
DIN 580 A4 M 6 Lifting eye bolts, drop forged	0580406	25	A4	5,80 kg	25 pcs.		6 mm	Metric	500 N/mm2	16 mm	13 mm	16 mm	6 mm
DIN 580 A4 M 8 Lifting eye bolts, drop forged	0580408	25	A4	6,00 kg	25 pcs.		8 mm	Metric	500 N/mm2	20 mm	13 mm	20 mm	6 mm

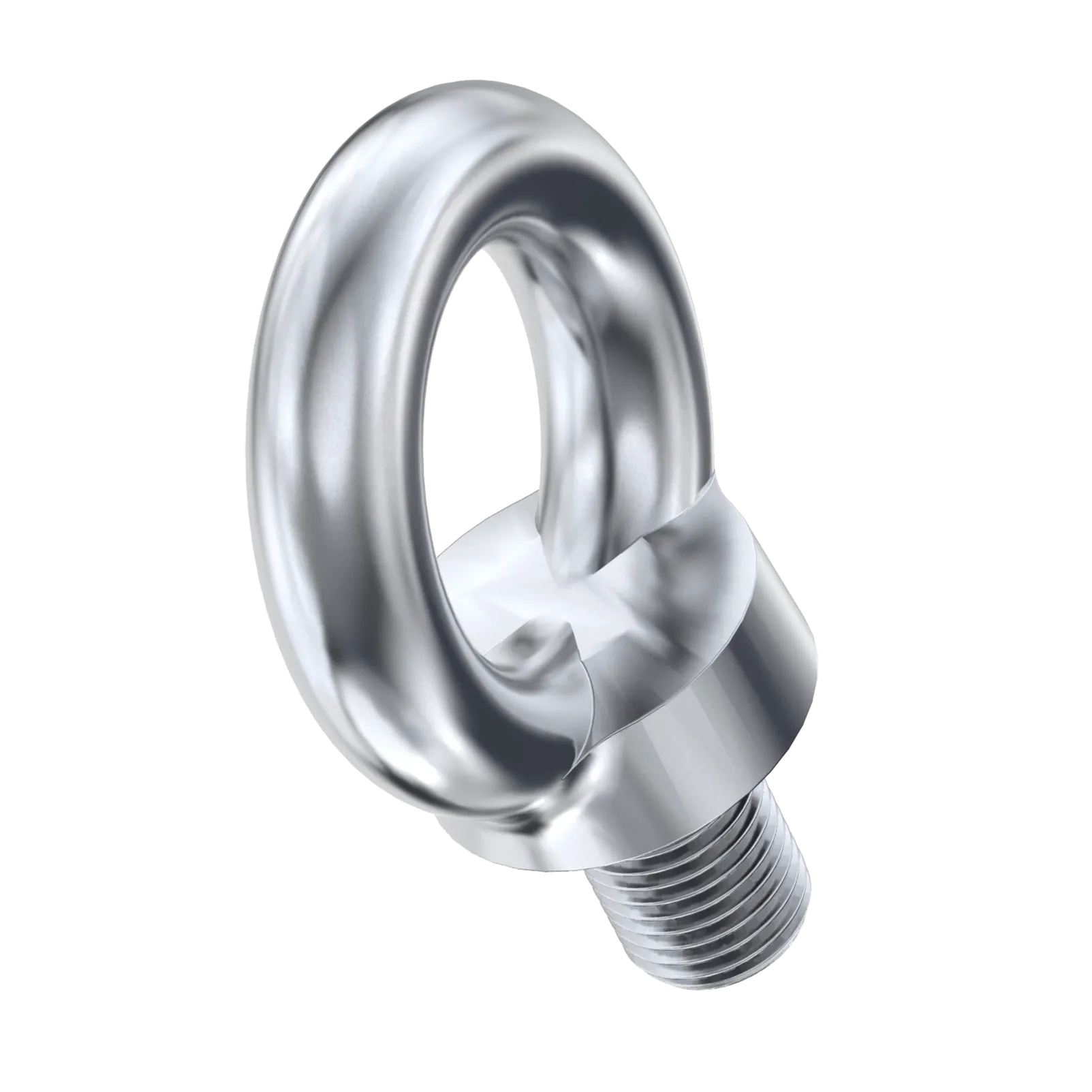

DIN 580 - DIN 580 - Lifting Eye Bolts Drop Forged
