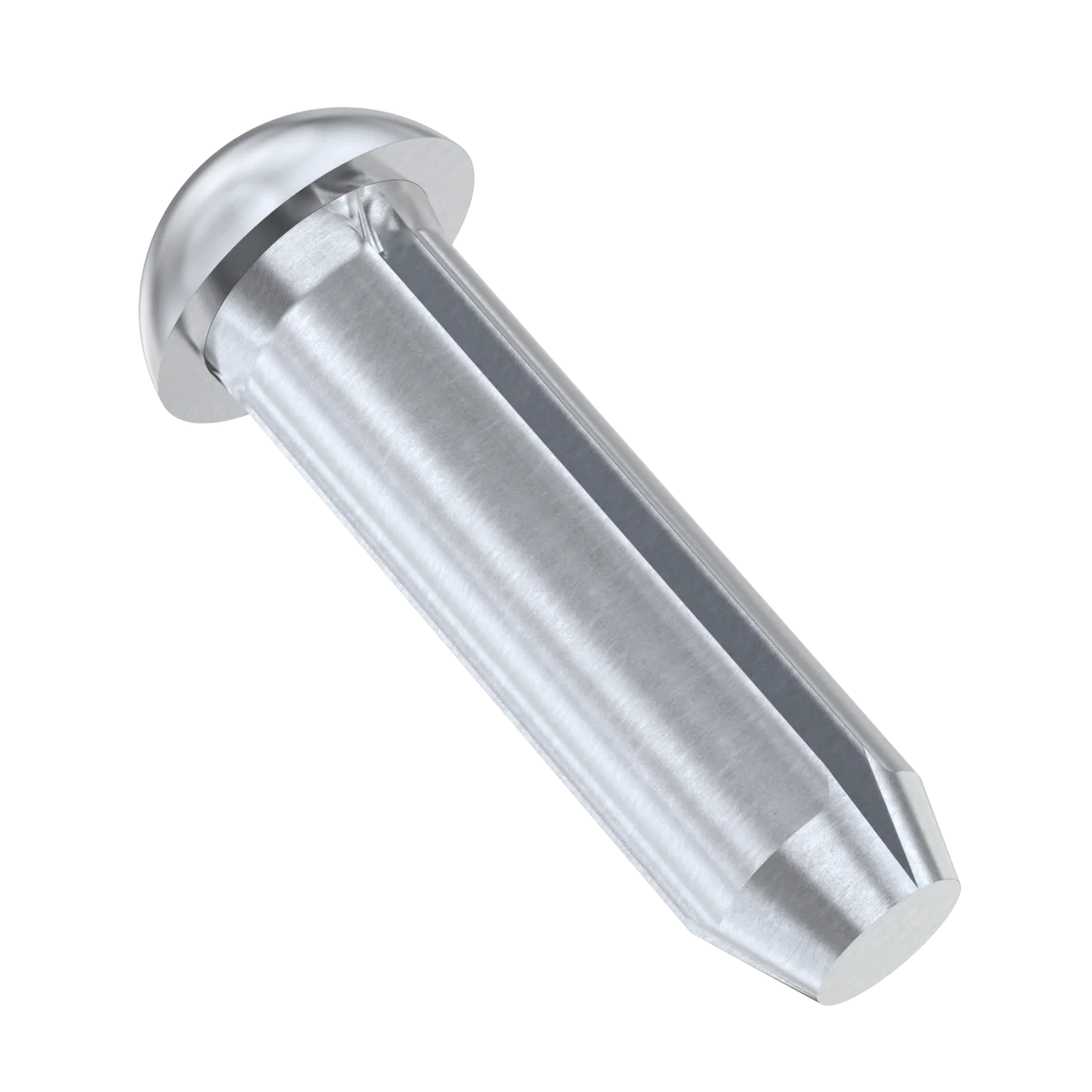

DIN 1476 - Grooved Pins With Round Head

    back
    DIN 1476 - Grooved Pins With Round Head - 1
    DIN 1476 - Grooved Pins With Round Head - 2
    DIN 1476 - Grooved Pins With Round Head - 3
    DIN 1476 - Grooved Pins With Round Head
    Grooved pins with round head 57 ürün

    Material (1)

    Weight per 100 pcs. (33)

    Sütunlar: Material Weight per 100 pcs. Packaging Diameter (d) Tensile strength Length (l) Diameter of head (dk) Height of head (k) Head shape Katalog PDF
    Description Item No Unit** Material Weight per 100 pcs. Packaging Diameter (d) Tensile strength Length (l) Diameter of head (dk) Height of head (k) Head shape
    DIN 1476 A2 1,4X3 Grooved pins with round head 1476214 3 500 A2 0,01 kg 500 pcs. 1.4 mm 500 N/mm2 3 mm 0.8 Semi-circular head
    DIN 1476 A2 1,4X4 Grooved pins with round head 1476214 4 500 A2 0,01 kg 500 pcs. 1.4 mm 500 N/mm2 4 mm 0.8 Semi-circular head
    DIN 1476 A2 1,4X5 Grooved pins with round head 1476214 5 500 A2 0,01 kg 500 pcs. 1.4 mm 500 N/mm2 5 mm 0.8 Semi-circular head
    DIN 1476 A2 1,4X6 Grooved pins with round head 1476214 6 500 A2 0,01 kg 500 pcs. 1.4 mm 500 N/mm2 6 mm 0.8 Semi-circular head
    DIN 1476 A2 1,6X3 Grooved pins with round head 1476216 3 500 A2 0,01 kg 500 pcs. 1.6 mm 500 N/mm2 3 mm 1 Semi-circular head
    DIN 1476 A2 1,6X4 Grooved pins with round head 1476216 4 500 A2 0,01 kg 500 pcs. 1.6 mm 500 N/mm2 4 mm 1 Semi-circular head
    DIN 1476 A2 1,6X5 Grooved pins with round head 1476216 5 500 A2 0,01 kg 500 pcs. 1.6 mm 500 N/mm2 5 mm 1 Semi-circular head
    DIN 1476 A2 1,6X6 Grooved pins with round head 1476216 6 500 A2 0,01 kg 500 pcs. 1.6 mm 500 N/mm2 6 mm 1 Semi-circular head
    DIN 1476 A2 2,5X10 Grooved pins with round head 1476225 10 500 A2 0,05 kg 500 pcs. 2.5 mm 500 N/mm2 10 mm 4.6 1.5 Semi-circular head
    DIN 1476 A2 2,5X12 Grooved pins with round head 1476225 12 500 A2 0,05 kg 500 pcs. 2.5 mm 500 N/mm2 12 mm 4.6 1.5 Semi-circular head
    DIN 1476 A2 2,5X3 Grooved pins with round head 1476225 3 500 A2 0,02 kg 500 pcs. 2.5 mm 500 N/mm2 3 mm 4.6 1.5 Semi-circular head
    DIN 1476 A2 2,5X4 Grooved pins with round head 1476225 4 500 A2 0,02 kg 500 pcs. 2.5 mm 500 N/mm2 4 mm 4.6 1.5 Semi-circular head
    DIN 1476 A2 2,5X5 Grooved pins with round head 1476225 5 500 A2 0,03 kg 500 pcs. 2.5 mm 500 N/mm2 5 mm 4.6 1.5 Semi-circular head
    DIN 1476 A2 2,5X6 Grooved pins with round head 1476225 6 500 A2 0,03 kg 500 pcs. 2.5 mm 500 N/mm2 6 mm 4.6 1.5 Semi-circular head
    DIN 1476 A2 2,5X8 Grooved pins with round head 1476225 8 500 A2 0,04 kg 500 pcs. 2.5 mm 500 N/mm2 8 mm 4.6 1.5 Semi-circular head
    DIN 1476 A2 2X10 Grooved pins with round head 147622 10 500 A2 0,03 kg 500 pcs. 2 mm 500 N/mm2 10 mm 3.7 1.2 Semi-circular head
    DIN 1476 A2 2X3 Grooved pins with round head 147622 3 500 A2 0,01 kg 500 pcs. 2 mm 500 N/mm2 3 mm 3.7 1.2 Semi-circular head
    DIN 1476 A2 2X4 Grooved pins with round head 147622 4 500 A2 0,02 kg 500 pcs. 2 mm 500 N/mm2 4 mm 3.7 1.2 Semi-circular head
    DIN 1476 A2 2X5 Grooved pins with round head 147622 5 500 A2 0,02 kg 500 pcs. 2 mm 500 N/mm2 5 mm 3.7 1.2 Semi-circular head
    DIN 1476 A2 2X6 Grooved pins with round head 147622 6 500 A2 0,02 kg 500 pcs. 2 mm 500 N/mm2 6 mm 3.7 1.2 Semi-circular head
    DIN 1476 A2 2X8 Grooved pins with round head 147622 8 500 A2 0,03 kg 500 pcs. 2 mm 500 N/mm2 8 mm 3.7 1.2 Semi-circular head
    DIN 1476 A2 3X10 Grooved pins with round head 147623 10 500 A2 0,08 kg 500 pcs. 3 mm 500 N/mm2 10 mm 5.45 1.8 Semi-circular head
    DIN 1476 A2 3X12 Grooved pins with round head 147623 12 500 A2 0,09 kg 500 pcs. 3 mm 500 N/mm2 12 mm 5.45 1.8 Semi-circular head
    DIN 1476 A2 3X16 Grooved pins with round head 147623 16 500 A2 0,11 kg 500 pcs. 3 mm 500 N/mm2 16 mm 5.45 1.8 Semi-circular head
    DIN 1476 A2 3X4 Grooved pins with round head 147623 4 500 A2 0,04 kg 500 pcs. 3 mm 500 N/mm2 4 mm 5.45 1.8 Semi-circular head
    DIN 1476 A2 3X5 Grooved pins with round head 147623 5 500 A2 0,05 kg 500 pcs. 3 mm 500 N/mm2 5 mm 5.45 1.8 Semi-circular head
    DIN 1476 A2 3X6 Grooved pins with round head 147623 6 500 A2 0,05 kg 500 pcs. 3 mm 500 N/mm2 6 mm 5.45 1.8 Semi-circular head
    DIN 1476 A2 3X8 Grooved pins with round head 147623 8 500 A2 0,06 kg 500 pcs. 3 mm 500 N/mm2 8 mm 5.45 1.8 Semi-circular head
    DIN 1476 A2 4X10 Grooved pins with round head 147624 10 200 A2 0,15 kg 200 pcs. 4 mm 500 N/mm2 10 mm 7.25 2.4 Semi-circular head
    DIN 1476 A2 4X12 Grooved pins with round head 147624 12 200 A2 0,17 kg 200 pcs. 4 mm 500 N/mm2 12 mm 7.25 2.4 Semi-circular head
    DIN 1476 A2 4X16 Grooved pins with round head 147624 16 200 A2 0,21 kg 200 pcs. 4 mm 500 N/mm2 16 mm 7.25 2.4 Semi-circular head
    DIN 1476 A2 4X20 Grooved pins with round head 147624 20 200 A2 0,25 kg 200 pcs. 4 mm 500 N/mm2 20 mm 7.25 2.4 Semi-circular head
    DIN 1476 A2 4X5 Grooved pins with round head 147624 5 200 A2 0,09 kg 200 pcs. 4 mm 500 N/mm2 5 mm 7.25 2.4 Semi-circular head
    DIN 1476 A2 4X6 Grooved pins with round head 147624 6 200 A2 0,11 kg 200 pcs. 4 mm 500 N/mm2 6 mm 7.25 2.4 Semi-circular head
    DIN 1476 A2 4X8 Grooved pins with round head 147624 8 200 A2 0,13 kg 200 pcs. 4 mm 500 N/mm2 8 mm 7.25 2.4 Semi-circular head
    DIN 1476 A2 5X10 Grooved pins with round head 147625 10 200 A2 0,25 kg 200 pcs. 5 mm 500 N/mm2 10 mm 9.1 3 Semi-circular head
    DIN 1476 A2 5X12 Grooved pins with round head 147625 12 200 A2 0,28 kg 200 pcs. 5 mm 500 N/mm2 12 mm 9.1 3 Semi-circular head
    DIN 1476 A2 5X16 Grooved pins with round head 147625 16 200 A2 0,34 kg 200 pcs. 5 mm 500 N/mm2 16 mm 9.1 3 Semi-circular head
    DIN 1476 A2 5X20 Grooved pins with round head 147625 20 200 A2 0,41 kg 200 pcs. 5 mm 500 N/mm2 20 mm 9.1 3 Semi-circular head
    DIN 1476 A2 5X6 Grooved pins with round head 147625 6 200 A2 0,18 kg 200 pcs. 5 mm 500 N/mm2 6 mm 9.1 3 Semi-circular head
    DIN 1476 A2 5X8 Grooved pins with round head 147625 8 200 A2 0,21 kg 200 pcs. 5 mm 500 N/mm2 8 mm 9.1 3 Semi-circular head
    DIN 1476 A2 6X10 Grooved pins with round head 147626 10 100 A2 0,38 kg 100 pcs. 6 mm 500 N/mm2 10 mm 3.6 Semi-circular head
    DIN 1476 A2 6X12 Grooved pins with round head 147626 12 100 A2 0,42 kg 100 pcs. 6 mm 500 N/mm2 12 mm 3.6 Semi-circular head
    DIN 1476 A2 6X16 Grooved pins with round head 147626 16 100 A2 0,51 kg 100 pcs. 6 mm 500 N/mm2 16 mm 3.6 Semi-circular head
    DIN 1476 A2 6X20 Grooved pins with round head 147626 20 100 A2 0,60 kg 100 pcs. 6 mm 500 N/mm2 20 mm 3.6 Semi-circular head
    DIN 1476 A2 6X25 Grooved pins with round head 147626 25 100 A2 0,72 kg 100 pcs. 6 mm 500 N/mm2 25 mm 3.6 Semi-circular head
    DIN 1476 A2 6X30 Grooved pins with round head 147626 30 100 A2 0,83 kg 100 pcs. 6 mm 500 N/mm2 30 mm 3.6 Semi-circular head
    DIN 1476 A2 6X35 Grooved pins with round head 147626 35 100 A2 0,95 kg 100 pcs. 6 mm 500 N/mm2 35 mm 3.6 Semi-circular head
    DIN 1476 A2 6X8 Grooved pins with round head 147626 8 100 A2 0,33 kg 100 pcs. 6 mm 500 N/mm2 8 mm 3.6 Semi-circular head
    DIN 1476 A2 8X10 Grooved pins with round head 147628 10 50 A2 0,75 kg 50 pcs. 8 mm 500 N/mm2 10 mm 4.8 Semi-circular head
    DIN 1476 A2 8X12 Grooved pins with round head 147628 12 50 A2 0,83 kg 50 pcs. 8 mm 500 N/mm2 12 mm 4.8 Semi-circular head
    DIN 1476 A2 8X16 Grooved pins with round head 147628 16 50 A2 1,00 kg 50 pcs. 8 mm 500 N/mm2 16 mm 4.8 Semi-circular head
    DIN 1476 A2 8X20 Grooved pins with round head 147628 20 50 A2 1,17 kg 50 pcs. 8 mm 500 N/mm2 20 mm 4.8 Semi-circular head
    DIN 1476 A2 8X25 Grooved pins with round head 147628 25 50 A2 1,34 kg 50 pcs. 8 mm 500 N/mm2 25 mm 4.8 Semi-circular head
    DIN 1476 A2 8X30 Grooved pins with round head 147628 30 50 A2 1,56 kg 50 pcs. 8 mm 500 N/mm2 30 mm 4.8 Semi-circular head
    DIN 1476 A2 8X35 Grooved pins with round head 147628 35 50 A2 1,77 kg 50 pcs. 8 mm 500 N/mm2 35 mm 4.8 Semi-circular head
    DIN 1476 A2 8X40 Grooved pins with round head 147628 40 50 A2 1,97 kg 50 pcs. 8 mm 500 N/mm2 40 mm 4.8 Semi-circular head
