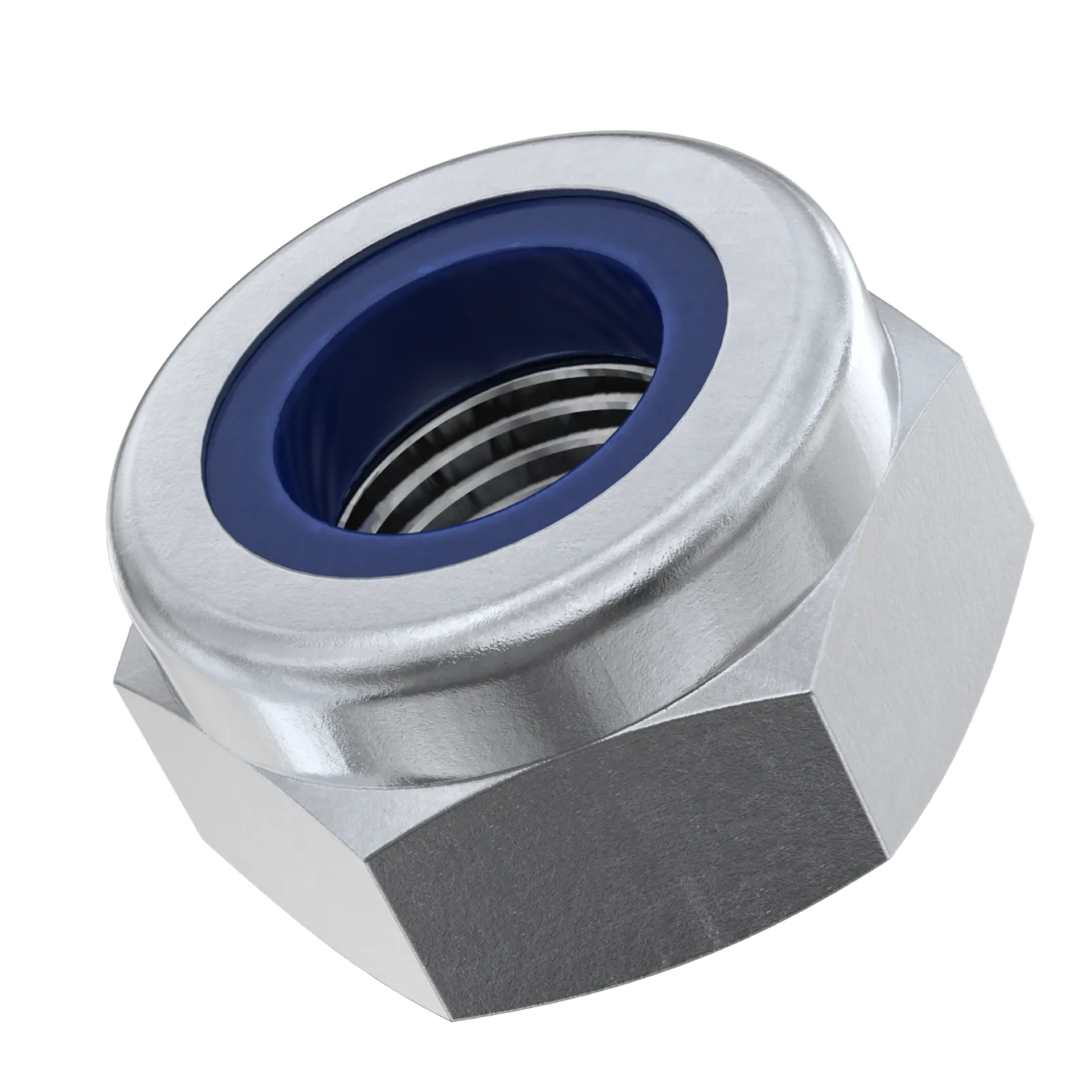

DIN 985 - Self-Locking Hexagon Nuts

    back
    DIN 985 - Self-Locking Hexagon Nuts - 1
    DIN 985 - Self-Locking Hexagon Nuts - 2
    DIN 985 - Self-Locking Hexagon Nuts - 3
    DIN 985 - Self-Locking Hexagon Nuts - 4
    DIN 985 - Self-Locking Hexagon Nuts
    Self-locking hexagon nuts 57 ürün

    Material (2)

    Weight per 100 pcs. (20)

    Height (m) (17)

    Sütunlar: Material Weight per 100 pcs. Packaging Alternative product Height (m) Diameter (d) Thread type Tensile strength Measurement h (h) Drive shape Packaging Pallet Drive size Corner measurement (e) Katalog PDF
    Description Item No Unit** Material Weight per 100 pcs. Packaging Alternative product Height (m) Diameter (d) Thread type Tensile strength Measurement h (h) Drive shape Packaging Pallet Drive size Corner measurement (e)
    DIN 985 A2 M 2,5 Gleitmo Self-locking hexagon nuts 0985225 500 A2 0,03 kg 500 pcs. DIN 985 A4 M 2,5 Gleitmo 3.5 mm 2.5 mm Metric 500 N/mm2 3.5 mm Outer hex A/F 5 5.5 mm
    DIN 985 A2 M 3 Gleitmo Self-locking hexagon nuts 098523 500 648000 A2 0,04 kg DIN 985 A4 M 3 Gleitmo 4 mm 3 mm Metric 500 N/mm2 4 mm Outer hex 500 pcs. 648000 pcs. A/F 5,5 6.01 mm
    DIN 985 A2 M 4 Gleitmo Self-locking hexagon nuts 098524 500 648000 A2 0,09 kg DIN 985 A4 M 4 Gleitmo 5 mm 4 mm Metric 500 N/mm2 5 mm Outer hex 500 pcs. 648000 pcs. A/F 7 7.66 mm
    DIN 985 A2-50 M 27 Gleitmo Self-locking hexagon nuts 0985227 25 3600 A2 15,50 kg DIN 985 A4-50 M 27 Gleitmo 27 mm 27 mm Metric 500 N/mm2 27 mm Outer hex 25 pcs. 3600 pcs. A/F 41 45.2 mm
    DIN 985 A2-50 M 30 Gleitmo Self-locking hexagon nuts 0985230 25 3600 A2 21,20 kg DIN 985 A4-50 M 30 Gleitmo 30 mm 30 mm Metric 500 N/mm2 30 mm Outer hex 25 pcs. 3600 pcs. A/F 46 50.85 mm
    DIN 985 A2-50 M 33 Gleitmo Self-locking hexagon nuts 0985233 10 A2 31,70 kg 10 pcs. DIN 985 A4-50 M 33 Gleitmo 33 mm 33 mm Metric 500 N/mm2 33 mm Outer hex A/F 50 55.37 mm
    DIN 985 A2-50 M 36 Gleitmo Self-locking hexagon nuts 0985236 10 A2 41,50 kg 10 pcs. DIN 985 A4-50 M 36 Gleitmo 36 mm 36 mm Metric 500 N/mm2 36 mm Outer hex A/F 55 60.79 mm
    DIN 985 A2-70 M 10 Gleitmo Self-locking hexagon nuts 0985210 200 64800 A2 1,05 kg DIN 985 A4-80 M 10 Gleitmo 10 mm 10 mm Metric 700 N/mm2 10 mm Outer hex 200 pcs. 64800 pcs. A/F 17 18.9 mm
    DIN 985 A2-70 M 10X1 Gleitmo Self-locking hexagon nuts 0985210 1 200 64800 A2 1,05 kg DIN 985 A4-80 M 10X1 Gleitmo 10 mm 10 mm Fine thread 700 N/mm2 10 mm Outer hex 200 pcs. 64800 pcs. A/F 17 18.9 mm
    DIN 985 A2-70 M 12 Gleitmo Self-locking hexagon nuts 0985212 200 43200 A2 1,50 kg DIN 985 A4-80 M 12 Gleitmo 12 mm 12 mm Metric 700 N/mm2 12 mm Outer hex 200 pcs. 43200 pcs. A/F 19 21.1 mm
    DIN 985 A2-70 M 12X1,5 Gleitmo Self-locking hexagon nuts 0985212 15 200 43200 A2 1,50 kg DIN 985 A4-80 M 12X1,5 Gleitmo 12 mm 12 mm Fine thread 700 N/mm2 12 mm Outer hex 200 pcs. 43200 pcs. A/F 19 21.1 mm
    DIN 985 A2-70 M 14 Gleitmo Self-locking hexagon nuts 0985214 200 28800 A2 2,50 kg DIN 985 A4-80 M 14 Gleitmo 14 mm 14 mm Metric 700 N/mm2 14 mm Outer hex 200 pcs. 28800 pcs. A/F 22 24.49 mm
    DIN 985 A2-70 M 14X1,5 Gleitmo Self-locking hexagon nuts 0985214 15 100 21600 A2 2,60 kg DIN 985 A4-80 M 14X1,5 Gleitmo 14 mm 14 mm Fine thread 700 N/mm2 14 mm Outer hex 100 pcs. 21600 pcs. A/F 22 24.49 mm
    DIN 985 A2-70 M 16 Gleitmo Self-locking hexagon nuts 0985216 100 21600 A2 3,20 kg DIN 985 A4-80 M 16 Gleitmo 16 mm 16 mm Metric 700 N/mm2 16 mm Outer hex 100 pcs. 21600 pcs. A/F 24 26.75 mm
    DIN 985 A2-70 M 16X1,5 Gleitmo Self-locking hexagon nuts 0985216 15 100 21600 A2 3,20 kg DIN 985 A4-80 M 16X1,5 Gleitmo 16 mm 16 mm Fine thread 700 N/mm2 16 mm Outer hex 100 pcs. 21600 pcs. A/F 24 26.75 mm
    DIN 985 A2-70 M 18 Gleitmo Self-locking hexagon nuts 0985218 50 10800 A2 4,50 kg DIN 985 A4-80 M 18 Gleitmo 18.5 mm 18 mm Metric 700 N/mm2 18.5 mm Outer hex 50 pcs. 10800 pcs. A/F 27 29.56 mm
    DIN 985 A2-70 M 18X1,5 Gleitmo Self-locking hexagon nuts 0985218 15 50 10800 A2 4,50 kg DIN 985 A4-80 M 18X1,5 Gleitmo 18.5 mm 18 mm Fine thread 700 N/mm2 18.5 mm Outer hex 50 pcs. 10800 pcs. A/F 27 29.56 mm
    DIN 985 A2-70 M 20 Gleitmo Self-locking hexagon nuts 0985220 50 10800 A2 6,30 kg DIN 985 A4-80 M 20 Gleitmo 20 mm 20 mm Metric 700 N/mm2 20 mm Outer hex 50 pcs. 10800 pcs. A/F 30 32.95 mm
    DIN 985 A2-70 M 20X1,5 Gleitmo Self-locking hexagon nuts 0985220 15 50 10800 A2 6,30 kg DIN 985 A4-80 M 20X1,5 Gleitmo 20 mm 20 mm Fine thread 700 N/mm2 20 mm Outer hex 50 pcs. 10800 pcs. A/F 30 32.95 mm
    DIN 985 A2-70 M 22 Gleitmo Self-locking hexagon nuts 0985222 25 8100 A2 7,50 kg DIN 985 A4-80 M 22 Gleitmo 22 mm 22 mm Metric 700 N/mm2 22 mm Outer hex 25 pcs. 8100 pcs. A/F 32 35.03 mm
    DIN 985 A2-70 M 22X1,5 Gleitmo Self-locking hexagon nuts 0985222 15 25 8100 A2 7,50 kg DIN 985 A4-80 M 22X1,5 Gleitmo 22 mm 22 mm Fine thread 700 N/mm2 22 mm Outer hex 25 pcs. 8100 pcs. A/F 32 35.03 mm
    DIN 985 A2-70 M 24 Gleitmo Self-locking hexagon nuts 0985224 25 5400 A2 10,00 kg DIN 985 A4-70 M 24 Gleitmo 24 mm 24 mm Metric 700 N/mm2 24 mm Outer hex 25 pcs. 5400 pcs. A/F 36 39.55 mm
    DIN 985 A2-70 M 24X2 Gleitmo Self-locking hexagon nuts 0985224 2 25 5400 A2 10,00 kg DIN 985 A4-70 M 24X2 Gleitmo 24 mm 24 mm Fine thread 700 N/mm2 24 mm Outer hex 25 pcs. 5400 pcs. A/F 36 39.55 mm
    DIN 985 A2-70 M 5 Gleitmo Self-locking hexagon nuts 098525 500 540000 A2 0,10 kg DIN 985 A4-80 M 5 Gleitmo 5 mm 5 mm Metric 700 N/mm2 5 mm Outer hex 500 pcs. 540000 pcs. A/F 8 8.79 mm
    DIN 985 A2-70 M 6 Gleitmo Self-locking hexagon nuts 098526 500 324000 A2 0,23 kg DIN 985 A4-80 M 6 Gleitmo 6 mm 6 mm Metric 700 N/mm2 6 mm Outer hex 500 pcs. 324000 pcs. A/F 10 11.05 mm
    DIN 985 A2-70 M 8 Gleitmo Self-locking hexagon nuts 098528 500 144000 A2 0,47 kg DIN 985 A4-80 M 8 Gleitmo 8 mm 8 mm Metric 700 N/mm2 8 mm Outer hex 500 pcs. 144000 pcs. A/F 13 14.38 mm
    DIN 985 A2-70 M 8X1 Gleitmo Self-locking hexagon nuts 098528 1 200 144000 A2 0,47 kg DIN 985 A4-80 M 8X1 Gleitmo 8 mm 8 mm Fine thread 700 N/mm2 8 mm Outer hex 200 pcs. 144000 pcs. A/F 13 14.38 mm
    DIN 985 A4 M 2,5 Gleitmo Self-locking hexagon nuts 0985425 500 A4 0,03 kg 500 pcs. 3.5 mm 2.5 mm Metric 500 N/mm2 3.5 mm Outer hex A/F 5 5.5 mm
    DIN 985 A4 M 3 Gleitmo Self-locking hexagon nuts 098543 500 A4 0,04 kg 500 pcs. 4 mm 3 mm Metric 500 N/mm2 4 mm Outer hex A/F 5,5 6.01 mm
    DIN 985 A4 M 4 Gleitmo Self-locking hexagon nuts 098544 500 A4 0,09 kg 500 pcs. 5 mm 4 mm Metric 500 N/mm2 5 mm Outer hex A/F 7 7.66 mm
    DIN 985 A4-50 M 27 Gleitmo Self-locking hexagon nuts 0985427 25 A4 16,20 kg 25 pcs. 27 mm 27 mm Metric 500 N/mm2 27 mm Outer hex A/F 41 45.2 mm
    DIN 985 A4-50 M 30 Gleitmo Self-locking hexagon nuts 0985430 25 A4 21,20 kg 25 pcs. 30 mm 30 mm Metric 500 N/mm2 30 mm Outer hex A/F 46 50.85 mm
    DIN 985 A4-50 M 33 Gleitmo Self-locking hexagon nuts 0985433 10 A4 31,70 kg 10 pcs. 33 mm 33 mm Metric 500 N/mm2 33 mm Outer hex A/F 50 55.37 mm
    DIN 985 A4-50 M 36 Gleitmo Self-locking hexagon nuts 0985436 10 A4 41,50 kg 10 pcs. 36 mm 36 mm Metric 500 N/mm2 36 mm Outer hex A/F 55 60.79 mm
    DIN 985 A4-70 M 24 Gleitmo Self-locking hexagon nuts 0985424 25 A4 10,00 kg 25 pcs. 24 mm 24 mm Metric 700 N/mm2 24 mm Outer hex A/F 36 39.55 mm
    DIN 985 A4-70 M 24X2 Gleitmo Self-locking hexagon nuts 0985424 2 25 A4 10,00 kg 25 pcs. 24 mm 24 mm Fine thread 700 N/mm2 24 mm Outer hex A/F 36 39.55 mm
    DIN 985 A4-80 M 10 Gleitmo Self-locking hexagon nuts 0985410 200 A4 1,05 kg 200 pcs. 10 mm 10 mm Metric 800 N/mm2 10 mm Outer hex A/F 17 18.9 mm
    DIN 985 A4-80 M 10 Gleitmo 627 Self-locking hexagon nuts 0985410G627 200 A4 1,05 kg 200 pcs. 10 mm Metric 800 N/mm2 10 mm Outer hex A/F 17 18.9 mm
    DIN 985 A4-80 M 10X1 Gleitmo Self-locking hexagon nuts 0985410 1 200 A4 1,05 kg 200 pcs. 10 mm 10 mm Fine thread 800 N/mm2 10 mm Outer hex A/F 17 18.9 mm
    DIN 985 A4-80 M 12 Gleitmo Self-locking hexagon nuts 0985412 200 A4 1,50 kg 200 pcs. 12 mm 12 mm Metric 800 N/mm2 12 mm Outer hex A/F 19 21.1 mm
    DIN 985 A4-80 M 12X1,5 Gleitmo Self-locking hexagon nuts 0985412 15 200 A4 1,50 kg 200 pcs. 12 mm 12 mm Fine thread 800 N/mm2 12 mm Outer hex A/F 19 21.1 mm
    DIN 985 A4-80 M 14 Gleitmo Self-locking hexagon nuts 0985414 200 A4 2,50 kg 200 pcs. 14 mm 14 mm Metric 800 N/mm2 14 mm Outer hex A/F 22 24.49 mm
    DIN 985 A4-80 M 14X1,5 Gleitmo Self-locking hexagon nuts 0985414 15 100 A4 2,60 kg 100 pcs. 14 mm 14 mm Fine thread 800 N/mm2 14 mm Outer hex A/F 22 24.49 mm
    DIN 985 A4-80 M 16 Gleitmo Self-locking hexagon nuts 0985416 100 A4 3,20 kg 100 pcs. 16 mm 16 mm Metric 800 N/mm2 16 mm Outer hex A/F 24 26.75 mm
    DIN 985 A4-80 M 16X1,5 Gleitmo Self-locking hexagon nuts 0985416 15 100 A4 3,20 kg 100 pcs. 16 mm 16 mm Fine thread 800 N/mm2 16 mm Outer hex A/F 24 26.75 mm
    DIN 985 A4-80 M 18 Gleitmo Self-locking hexagon nuts 0985418 50 A4 4,50 kg 50 pcs. 18.5 mm 18 mm Metric 800 N/mm2 18.5 mm Outer hex A/F 27 29.56 mm
    DIN 985 A4-80 M 18X1,5 Gleitmo Self-locking hexagon nuts 0985418 15 50 A4 4,50 kg 50 pcs. 18.5 mm 18 mm Fine thread 800 N/mm2 18.5 mm Outer hex A/F 27 29.56 mm
    DIN 985 A4-80 M 20 Gleitmo Self-locking hexagon nuts 0985420 50 A4 6,30 kg 50 pcs. 20 mm 20 mm Metric 800 N/mm2 20 mm Outer hex A/F 30 32.95 mm
    DIN 985 A4-80 M 20X1,5 Gleitmo Self-locking hexagon nuts 0985420 15 50 A4 6,30 kg 50 pcs. 20 mm 20 mm Fine thread 800 N/mm2 20 mm Outer hex A/F 30 32.95 mm
    DIN 985 A4-80 M 22 Gleitmo Self-locking hexagon nuts 0985422 25 A4 7,50 kg 25 pcs. 22 mm 22 mm Metric 800 N/mm2 22 mm Outer hex A/F 32 35.03 mm
    DIN 985 A4-80 M 22X1,5 Gleitmo Self-locking hexagon nuts 0985422 15 25 A4 7,50 kg 25 pcs. 22 mm 22 mm Fine thread 800 N/mm2 22 mm Outer hex A/F 32 35.03 mm
    DIN 985 A4-80 M 5 Gleitmo Self-locking hexagon nuts 098545 500 A4 0,10 kg 500 pcs. 5 mm 5 mm Metric 800 N/mm2 5 mm Outer hex A/F 8 8.79 mm
    DIN 985 A4-80 M 6 Gleitmo Self-locking hexagon nuts 098546 500 A4 0,23 kg 500 pcs. 6 mm 6 mm Metric 800 N/mm2 6 mm Outer hex A/F 10 11.05 mm
    DIN 985 A4-80 M 6 Gleitmo 627 Self-locking hexagon nuts 098546G627 1000 A4 0,23 kg 1000 pcs. 6 mm Metric 800 N/mm2 6 mm Outer hex A/F 10 11.05 mm
    DIN 985 A4-80 M 8 Gleitmo Self-locking hexagon nuts 098548 500 A4 0,47 kg 500 pcs. 8 mm 8 mm Metric 800 N/mm2 8 mm Outer hex A/F 13 14.38 mm
    DIN 985 A4-80 M 8 Gleitmo 627 Self-locking hexagon nuts 098548G627 500 A4 0,47 kg 500 pcs. 8 mm Metric 800 N/mm2 8 mm Outer hex A/F 13 14.38 mm
    DIN 985 A4-80 M 8X1 Gleitmo Self-locking hexagon nuts 098548 1 200 A4 0,47 kg 200 pcs. 8 mm 8 mm Fine thread 800 N/mm2 8 mm Outer hex A/F 13 14.38 mm
