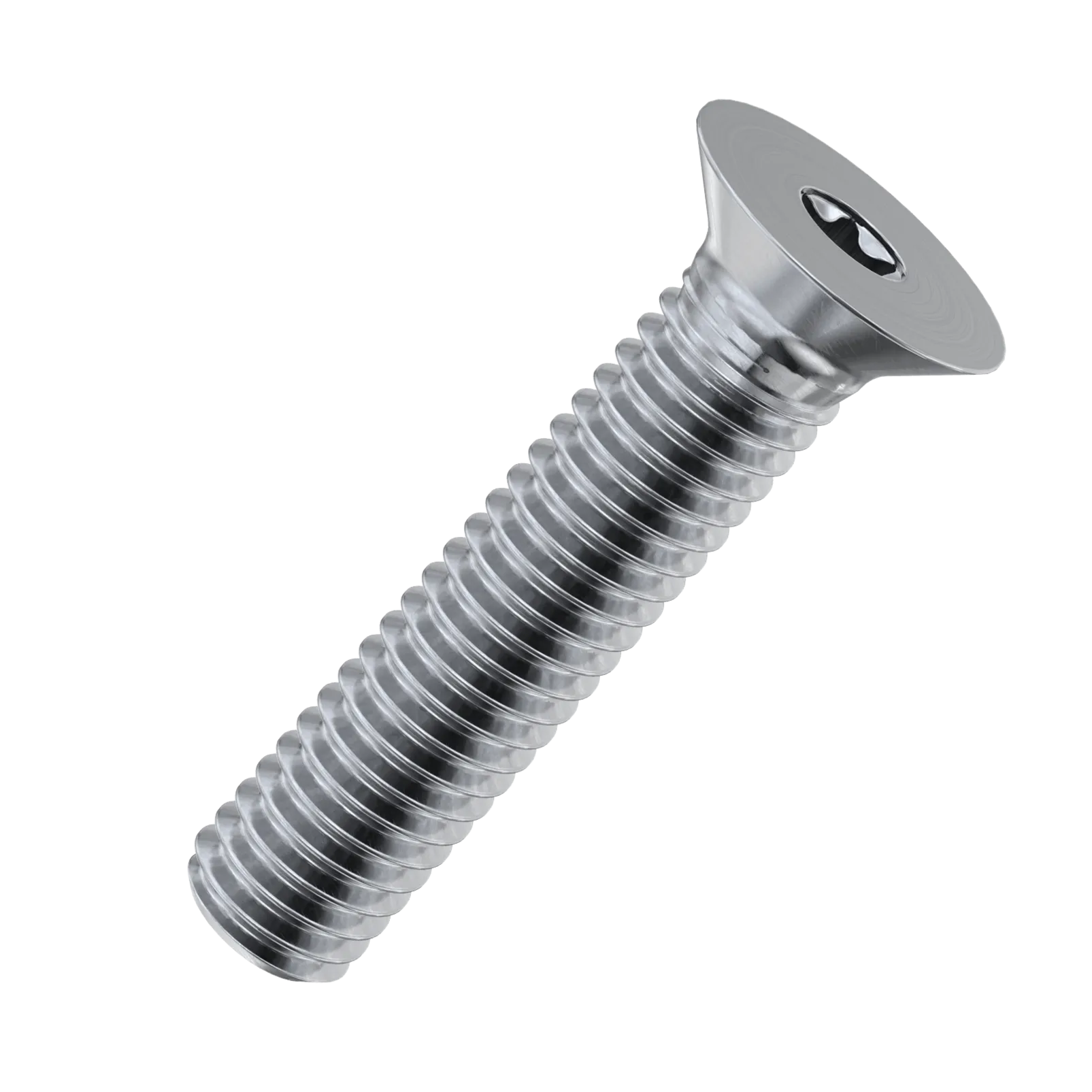

ISO 10642 TX Countersunk Head Screws Six Lobe Drive, Full thread

    back
    ISO 10642 TX Countersunk Head Screws Six Lobe Drive, Full thread - 1
    ISO 10642 TX Countersunk Head Screws Six Lobe Drive, Full thread - 2
    ISO 10642 TX Countersunk Head Screws Six Lobe Drive, Full thread - 3
    ISO 10642 TX Countersunk Head Screws Six Lobe Drive, Full thread - 4
    ISO 10642 TX Countersunk Head Screws Six Lobe Drive, Full thread
    32 ürün

    Material (2)

    Weight per 100 pcs. (15)

    Sütunlar: Material Weight per 100 pcs. Packaging Alternative product Diameter (d) Thread type Tensile strength Length (l) Diameter of head (dk) Height of head (k) Drive shape Head shape Drive size Corner measurement (e) Katalog PDF
    Description Item No Unit** Material Weight per 100 pcs. Packaging Alternative product Diameter (d) Thread type Tensile strength Length (l) Diameter of head (dk) Height of head (k) Drive shape Head shape Drive size Corner measurement (e)
    ISO 10642 A2 M 4X10 TX20 Countersunk head screws six lobe drive, fullthread 106422T4 10 500 A2 0,11 kg 500 pcs. ISO 10642 A4 M 4X10 TX20 4 mm Metric 500 N/mm2 10 mm 8 2.3 Inner multi-tooth Countersunk head TX20 2.87 mm
    ISO 10642 A2 M 4X12 TX20 Countersunk head screws six lobe drive, fullthread 106422T4 12 500 A2 0,12 kg 500 pcs. ISO 10642 A4 M 4X12 TX20 4 mm Metric 500 N/mm2 12 mm 8 2.3 Inner multi-tooth Countersunk head TX20 2.87 mm
    ISO 10642 A2 M 4X16 TX20 Countersunk head screws six lobe drive, fullthread 106422T4 16 500 A2 0,15 kg 500 pcs. ISO 10642 A4 M 4X16 TX20 4 mm Metric 500 N/mm2 16 mm 8 2.3 Inner multi-tooth Countersunk head TX20 2.87 mm
    ISO 10642 A2 M 4X20 TX20 Countersunk head screws six lobe drive, fullthread 106422T4 20 500 A2 0,18 kg 500 pcs. ISO 10642 A4 M 4X20 TX20 4 mm Metric 500 N/mm2 20 mm 8 2.3 Inner multi-tooth Countersunk head TX20 2.87 mm
    ISO 10642 A2 M 5X10 TX25 Countersunk head screws six lobe drive, fullthread 106422T5 10 500 A2 0,19 kg 500 pcs. ISO 10642 A4 M 5X10 TX25 5 mm Metric 500 N/mm2 10 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A2 M 5X12 TX25 Countersunk head screws six lobe drive, fullthread 106422T5 12 500 A2 0,21 kg 500 pcs. ISO 10642 A4 M 5X12 TX25 5 mm Metric 500 N/mm2 12 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A2 M 5X16 TX25 Countersunk head screws six lobe drive, fullthread 106422T5 16 500 A2 0,26 kg 500 pcs. ISO 10642 A4 M 5X16 TX25 5 mm Metric 500 N/mm2 16 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A2 M 6X12 TX30 Countersunk head screws six lobe drive, fullthread 106422T6 12 200 A2 0,31 kg 200 pcs. ISO 10642 A4 M 6X12 TX30 6 mm Metric 500 N/mm2 12 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A2 M 6X14 TX30 Countersunk head screws six lobe drive, fullthread 106422T6 14 200 A2 0,34 kg 200 pcs. ISO 10642 A4 M 6X14 TX30 6 mm Metric 500 N/mm2 14 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A2 M 6X16 TX30 Countersunk head screws six lobe drive, fullthread 106422T6 16 200 A2 0,38 kg 200 pcs. ISO 10642 A4 M 6X16 TX30 6 mm Metric 500 N/mm2 16 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A2 M 6X20 TX30 Countersunk head screws six lobe drive, fullthread 106422T6 20 200 A2 0,45 kg 200 pcs. ISO 10642 A4 M 6X20 TX30 6 mm Metric 500 N/mm2 20 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A2-070 M 5X20 TX25 Countersunk head screws six lobe drive, fullthread 106422T5 20 500 A2 0,31 kg 500 pcs. ISO 10642 A4-070 M 5X20 TX25 5 mm Metric 560 N/mm2 20 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A2-070 M 5X25 TX25 Countersunk head screws six lobe drive, fullthread 106422T5 25 500 A2 0,37 kg 500 pcs. ISO 10642 A4-070 M 5X25 TX25 5 mm Metric 560 N/mm2 25 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A2-070 M 5X30 TX25 Hexagon socket countersunk head screws, fullthread 106422T5 30 500 A2 0,43 kg 500 pcs. ISO 10642 A4-070 M 5X30 TX25 5 mm Metric 560 N/mm2 30 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A2-070 M 6X25 TX30 Countersunk head screws six lobe drive, fullthread 106422T6 25 200 A2 0,53 kg 200 pcs. ISO 10642 A4-070 M 6X25 TX30 6 mm Metric 560 N/mm2 25 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A2-070 M 6X30 TX30 Countersunk head screws six lobe drive, fullthread 106422T6 30 200 A2 0,62 kg 200 pcs. ISO 10642 A4-070 M 6X30 TX30 6 mm Metric 560 N/mm2 30 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A4 M 4X10 TX20 Countersunk head screws six lobe drive, fullthread 106424T4 10 500 A4 0,11 kg 500 pcs. 4 mm Metric 500 N/mm2 10 mm 8 2.3 Inner multi-tooth Countersunk head TX20 2.87 mm
    ISO 10642 A4 M 4X12 TX20 Countersunk head screws six lobe drive, fullthread 106424T4 12 500 A4 0,12 kg 500 pcs. 4 mm Metric 500 N/mm2 12 mm 8 2.3 Inner multi-tooth Countersunk head TX20 2.87 mm
    ISO 10642 A4 M 4X16 TX20 Countersunk head screws six lobe drive, fullthread 106424T4 16 500 A4 0,15 kg 500 pcs. 4 mm Metric 500 N/mm2 16 mm 8 2.3 Inner multi-tooth Countersunk head TX20 2.87 mm
    ISO 10642 A4 M 4X20 TX20 Countersunk head screws six lobe drive, fullthread 106424T4 20 500 A4 0,18 kg 500 pcs. 4 mm Metric 500 N/mm2 20 mm 8 2.3 Inner multi-tooth Countersunk head TX20 2.87 mm
    ISO 10642 A4 M 5X10 TX25 Countersunk head screws six lobe drive, fullthread 106424T5 10 500 A4 0,19 kg 500 pcs. 5 mm Metric 500 N/mm2 10 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A4 M 5X12 TX25 Countersunk head screws six lobe drive, fullthread 106424T5 12 500 A4 0,21 kg 500 pcs. 5 mm Metric 500 N/mm2 12 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A4 M 5X16 TX25 Countersunk head screws six lobe drive, fullthread 106424T5 16 500 A4 0,26 kg 500 pcs. 5 mm Metric 500 N/mm2 16 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A4 M 6X12 TX30 Countersunk head screws six lobe drive, fullthread 106424T6 12 200 A4 0,31 kg 200 pcs. 6 mm Metric 500 N/mm2 12 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A4 M 6X14 TX30 Countersunk head screws six lobe drive, fullthread 106424T6 14 200 A4 0,34 kg 200 pcs. 6 mm Metric 500 N/mm2 14 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A4 M 6X16 TX30 Countersunk head screws six lobe drive, fullthread 106424T6 16 200 A4 0,38 kg 200 pcs. 6 mm Metric 500 N/mm2 16 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A4 M 6X20 TX30 Countersunk head screws six lobe drive, fullthread 106424T6 20 200 A4 0,45 kg 200 pcs. 6 mm Metric 500 N/mm2 20 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A4-070 M 5X20 TX25 Countersunk head screws six lobe drive, fullthread 106424T5 20 500 A4 0,31 kg 500 pcs. 5 mm Metric 560 N/mm2 20 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A4-070 M 5X25 TX25 Countersunk head screws six lobe drive, fullthread 106424T5 25 500 A4 0,37 kg 500 pcs. 5 mm Metric 560 N/mm2 25 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A4-070 M 5X30 TX25 Hexagon socket countersunk head screws, fullthread 106424T5 30 500 A4 0,43 kg 500 pcs. 5 mm Metric 560 N/mm2 30 mm 10 2.8 Inner multi-tooth Countersunk head TX25 3.44 mm
    ISO 10642 A4-070 M 6X25 TX30 Countersunk head screws six lobe drive, fullthread 106424T6 25 200 A4 0,53 kg 200 pcs. 6 mm Metric 560 N/mm2 25 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
    ISO 10642 A4-070 M 6X30 TX30 Countersunk head screws six lobe drive, fullthread 106424T6 30 200 A4 0,62 kg 200 pcs. 6 mm Metric 560 N/mm2 30 mm 12 3.3 Inner multi-tooth Countersunk head TX30 4.58 mm
